2. School of Materials Science and Engineering, Nanjing Institute of Technology, Nanjing 211167, China
2. 南京工程学院, 江苏 南京 211167
The initial chemical events in the decompositions of condensed phase explosives under extreme conditions are very important to understand their complicated behaviors, to control their risk during usage and storage, and to develop new high-energy explosives[1]. 2, 4, 6, 8, 10, 12-hexanitro-2, 4, 6, 8, 10, 12-hexaazaisowurtzitane(CL-20), one of the most powerful high explosives, has a relatively high ambient temperature density of 2.04 g·cm-3 [4]. CL-20 has a high heat of formation[2] and detonation performance of D=9.6 km·s-1 and p=43 GPa with an isowurzitane cage structure and several nitramine groups[3]. The toxicity and potential carcinogenicity of CL-20 and its transformation products have led to concern about its fate in the environment and potential harm to human health. Major transformation processes of this compound in the environment occur at moderate but variable rates conditions[5]. It is thus very necessary to study the decomposition mechanisms of CL-20 under extreme conditions.
However, it is difficult to investigate many aspects of their reactivity with chemical experimental techniques. Molecular simulations offer risk-free and relatively accurate ways to study their behavior. Several studies[6-10] using ab initio molecular dynamics (AIMD) to study the details of the gas phase unimolecular and bimolecular reaction decompositions of the explosives at realistic reaction temperatures and pressures have seen tremendous progress in confirming and interpreting experimental observables. Recently, a computational DFT study[11] on the unimolecular decompositions of CL-20 showed that there are several types of reaction mechanisms for this process: an N—N bond homolytic cleavage to form the NO2 group, HONO elimination, the breaking of C—C and C—N bonds to result in ring opening and H-migration. An AIMD study on the initial chemical events in thermal decomposition of nitramine explosive CL-20[12] pointed out that CL-20 has only one distinct initial reaction channel (the N—NO2 bond hemolysis) during unimolecular decompositions. It did not observe any HONO elimination reaction, whereas the ring-breaking reaction was followed by the NO2 fission. Xue et al.[13] researched that the ring opening is observed to trigger molecular decay at all four shock conditions; while the sufficient NO2 fission is observed at shock velocities (Us)=8 km·s-1 and 9 km·s-1, and strongly inhibited at shock velocities (Us=10 km·s-1 and 11 km·s-1. There is obvious difference among the three researches, so it is necessary to study the initial and subsequent decomposition mechanisms of CL-20 under extreme conditions further.
In this work, we performed AIMD simulations to investigate initial decomposition mechanisms and subsequent decomposition process for crystalline CL-20 at extreme conditions (3000 K and 3000 K coupled with 44.5 GPa). These conditions were considered because 44.5 GPa is the initial decomposition pressure of CL-20 and its combustion flame temperature is 3000 K. Our purpose is to analyze its decomposition mechanisms under extreme conditions in detail and discuss the similarities and differences.
2 Simulations and Computational MethodOur AIMD simulations were performed within the framework of density functional theory[14-15] based on CASTEP code[16] using norm-conserving pseudopotentials[17] and a plane-wave expansion of the wave functions. The Perdew-Burke-Ernzerhof[18](PBE) exchange-correlation function was employed. A kinetic energy cutoff of 500 eV for the plane wave expansions was used in the MD simulations and 750 eV for structural optimization calculating total energy calculations To correct DFT for the missing van der Waals (vdW) interaction, we used the Grimme (G06)[19] and Tkatchenko and Scheffler (TS)[20] corrections to the PBE functional. We controlled the ionic temperature and pressure using a Nose′ thermostat[21] and an Andersen barostat[22], respectively. A time step of 1.0 fs was used in time integration. Previous studies[23] reported that a time step of 1.2 fs was used to study the thermal decomposition of PETN. Reciprocal space was sampled using the G-centered Monkhorst-Pack scheme and only the gamma point was used for the simulations. The convergence criteria were 1×10-5 eV energy differences for solving the electronic wave function and 1×10-3 eV force for structural optimization difference for AIMD simulation. Both the NVT and NPT ensembles were employed.
The procedure for the AIMD simulations was as follows: First, the system was equilibrated at 298.15 K for 5 ps using NVT. Then, based on this equilibrated system, AIMD simulations were carried out using NVT at 3000 K and using NPT at 3000 K coupled with 44.5 GPa, respectively. The pressure was applied equally in all directions without any symmetry constraint. The simulation time for the AIMD simulations was set to 40 ps using NVT and 17 ps using NPT.
3 Results and DiscussionBefore carrying out the calculations, we applied three different functionals (PBE-TS, PBE-G06, PBE) to relax the bulk CL-20 at ambient pressure without any constraint. Table 1 lists the relaxed and experimental cell parameters of CL-20. It is found that the calculation errors of a, b, c, β, and cell volume by the PBE-TS are -1.73%, -2.15%, -2.49%, 0.26%, and -6.65%, compared with the experimental results. The predicted errors by PBE-G06 are -1.16%, -1.56%, -1.03%, 0.004%, and -3.79%, respectively. The computation errors by the PBE are -7.58%, -7.1%, -6.39%, -0.29%, and -22.38%, respectively. This indicates that the lattice parameters estimated by the PBE-G06 are much closer to the experimental values than by the PBE-TS and PBE. Therefore, PBE-G06 was adopted for subsequent simulations.
|
Tab.1 Comparison of relaxed lattice parameters of CL-20 with experimental data at ambient conditions |
Scheme 1 presents the initial decomposition mechanism of the CL-20 crystal using NVT. It is found that the initial decomposition steps of the CL-20 molecule in the CL-20 crystal have two different paths: the C—C cleavage and the C—H bond breaking. The initial decomposition of the CL-20 crystal was triggered by the C—H cleavage using NVT. Scheme 2 presents the initial decomposition mechanisms of the CL-20 crystal using NPT. It is found that there are three kinds of initial decomposition mechanisms of the CL-20 molecules. This is much more complex than that using NVT. The initial decomposition steps of the CL-20 molecules in the crystal include above-mentioned C—C bond breaking, the C—N bond rupture, and the N—NO2 bond cleavage. The probability of the N—NO2 bond cleavage is much higher than that of other two reaction pathways. This indicates that the N—NO2 bond is much more sensitive using NPT (3000 K coulped with 44.5 GPa) than using NVT (3000 K). However, the initial decomposition of the CL-20 crystal was triggered by the C—C cleavage using NPT. Therefore, the pressure makes the initial reactions of the CL-20 molecule much more complex. Under the two extreme conditions, we did not observe any HONO elimination reaction during unimolecular decomposition. Different unimolecular decomposition pathways for other cyclic nitramine explosives such as dimethylnitramine(DMNA)[24], RDX[25-28], and HMX [29-34], have been theoretically investigated. It was reported that there are the following three types of decomposition mechanisms: (1) the N—N bond homolytic cleavage accompanied by the elimination of the NO2 group, (2) HONO elimination, and (3) ring-opening reactions. Our findings that the initial decomposition steps of CL-20 are the C—N and N—NO2 bond rupture were observed in the unimolecular decompositions of DMNA, RDX, and HMX[24-34]. Isayev et al.[12] pointed out that the initial step of unimolecular decomposition of CL-20 at high temperatures (1000-3000 K) is the N—NO2 bond hemolysis. This is in agreement with our simulations.
|

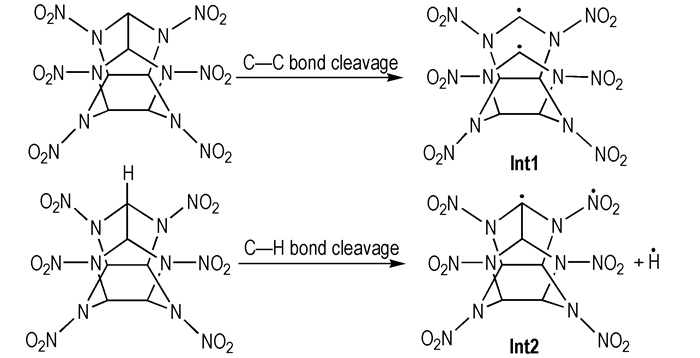

Scheme1 Initial decomposition mechanisms of the CL-20 molecules in the crystal during the NVT simulation |
|

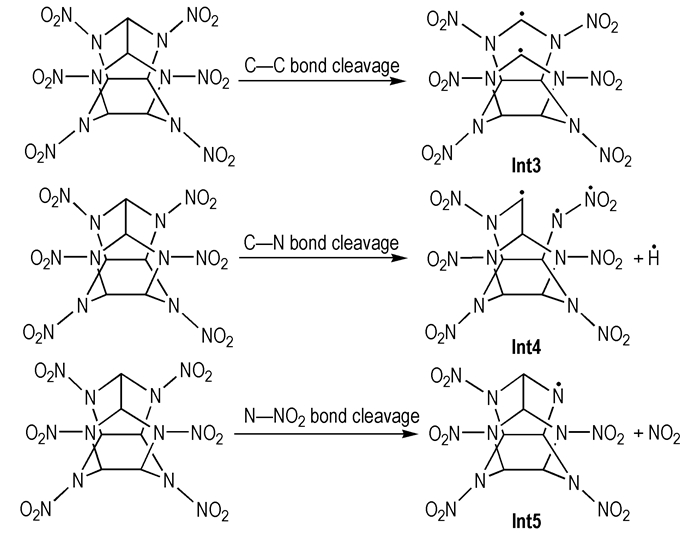

Scheme2 Initial decomposition mechanisms of the CL-20 molecules in the crystal during the NPT simulation |
More detailed subsequent decomposition processes after the initiation of the CL-20 crystal are shown in Scheme 3 and Scheme 4. It is seen in Scheme 3 that two major distinctive decomposition channels for the decomposition intermediates of CL-20 using NVT. These secondary reactions mainly include two interesting paths: Int1 produced Int1-1 by the breaking of N—NO2 bond. Int1-2 decomposed by the C—N bond cleavage to produce two smaller fragments. This is the key step to produce the branch of the nine-membered heterocycles. After several reaction steps, it further produced the important fragment
|

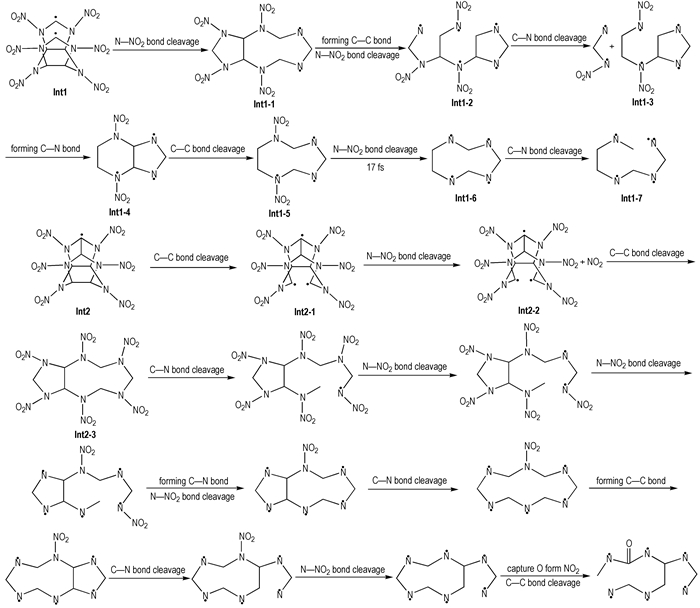

Scheme3 Subsequent decomposition mechanisms of the CL-20 crystal during the NVT simulation |
|

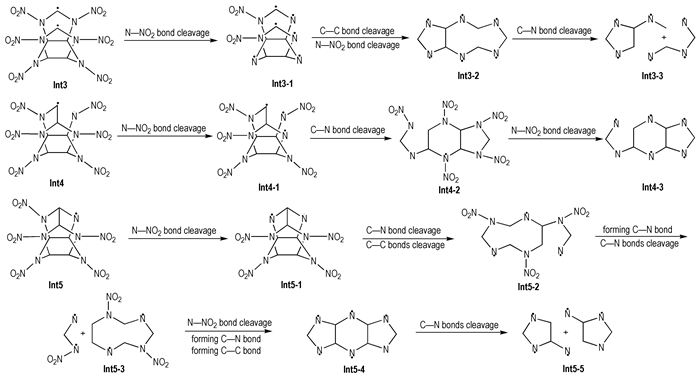

Scheme4 Subsequence decomposition mechanisms of CL-20 during the NPT simulation |
It is found in Scheme 4 that there is only one major distinctive channel for secondary decomposition of the decomposition intermediates of CL-20 using NPT. The three intermediates INT3, INT4, and INT5 decomposed all through the N—NO2 bond breaking to release NO2. There are five N—NO2 bonds breaking during the decomposition of INT3. After that, its cage structure collapsed by another C—C bond breaking to form INT3-2, which formed INT3-3 by the two C—N bond cleavage. This is the key step for the large ring breaking. There is an important intermediate of
Fig. 1 shows the time evolution of the population of key products during the decomposition of the CL-20 crystal using NVT. The CL-20 crystal is decomposed quickly at the beginning during the simulation. The first N2 is produced at the time of 800 fs. The concentration of N2 increases step by step during the whole simulation time, reaching a relatively balance value of 14 molecules after t=10.05 ps. NO2 is released quickly and its number reaches the maximum in a flash of reaction, but the number of NO2 decreases when the products NO and OH produced. This indicates that some NO2 decomposed to produce NO by capturing the H radicals to form OH fragment. Finally, NO2 vanishes to form other products at about 5 ps. At the time point when the number of NO2 reaches a maximum, NO2 is decomposed to produce NO. At 2.5 ps, the number of NO reaches the peak. NO diappears at about 23 ps. The number of OH has a similar variation trend with that of NO2. According to the trendline of OH fragment, it can be deduced that the H radicals are very active. At about 1.55 ps, the first CO2 is produced. Then the number of CO2 increases and reaches a maximum of 10 at 10.05 ps. After that, a relative balance appears thereafter.
|

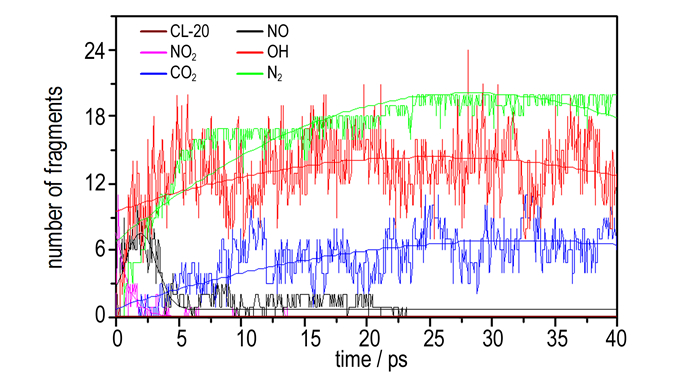

Fig.1 Time evolution of initial CL-20 molecules and products NO2, CO2, NO, OH, and N2 during the NPT simulation |
Fig. 2 displays the time evolution of the population of key products during the decomposition of the CL-20 crystal using NPT. The number of main product N2 increases gradually, reaching a relative balance value of 14 molecules at t=4.8 ps. Then it gets a balance thereafter. At the beginning of the decomposition, NO2 increases quickly and reaches a maximum at about 0.5 ps. Then it decreases quickly but does not vanish during the whole reaction. NO increases accompanied by the decrease of NO2 interestingly, it is seen in Fig. 2 that the variation trend line for the number of OH keeps level during about 12 ps. This suggests that there is a balance between the formation and decay of OH at this extreme condition. At about 1 ps, CO2 is produced and then increases, and reaches a balance, after about 10 ps. Although the main decomposition products are similar at these two extreme conditions, at the case of 3000 K coupled with 44.5 GPa is more complex than at 3000 K.
|
Fig.2 Time evolution of initial CL-20 molecules and products of NO2, CO2, NO, OH, and N2 during the NPT simulation |
Using NPT, one of important products is R-CxOy(x > 2, y > 5) during the decomposition of the CL-20 crystal. C3O6 clusters have attacked a new interest in the intense search for efficient, safe, and environment-friendly high energy density materials (HEDM), which can be used in propellants or explosives[35]. Fig. 3 displays the total number of R-CxOy during the decomposition stage of the CL-20 crystal as a function of time at 3000 K coupled with 44.5 GPa. While the product R-CxOy has not been observed in the decomposition at 3000 K. This also shows that the decomposition is much more complex at 3000 K coupled with 44.5 GPa than at 3000 K. At about 7.5 ps, the number of R-CxOy reaches a maximum. The trendline of the number of R-CxOy is stable after 7.5 ps.
|

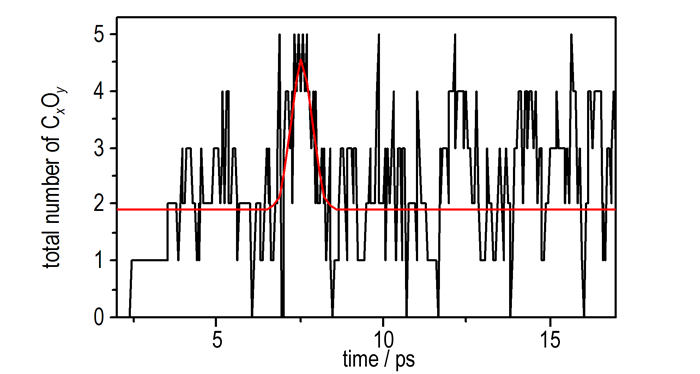

Fig.3 Time evolution of total number of the intermediate R-CxOy. The black thick trendline corresponds to the actual concentration data |
Fig. 4 compares the concentrations of the main decomposition products of the CL-20 crystal using NVT and using NPT as a function of time. It is found that the decomposition major products are the same using NVT and using NPT. The variation trends of the concentrations of corresponding main products are the same at two conditions. This obviously demonstrates that the decomposition mechanisms are sensitive to both the temperature and pressure. However, the concentrations of corresponding products using NPT are less than those using NVT. So the high pressure decelerates the decomposition.
|

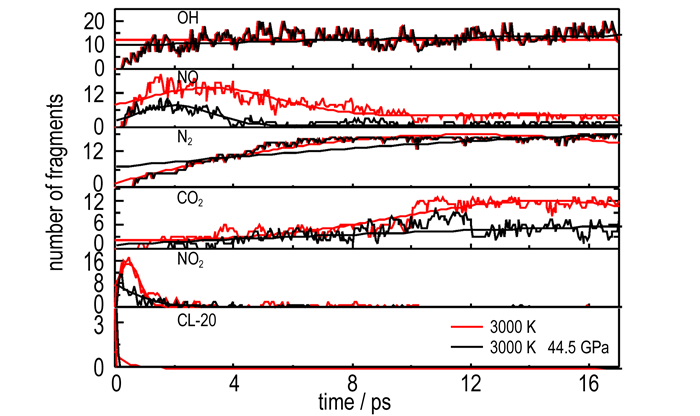

Fig.4 Comparison of time evolution of initial CL-20 molecules and products NO2, CO2, N2, NO, and OH during the decomposition of the CL-20 crystal using NVT and using NPT. Red and black thick trend lines correspond to the actual concentration data using NVT and using NPT, respectively |
In summary, we have performed AIMD simulations to understand the detailed and molecular-level information on the initial and following decomposition of high energy density material CL-20 under two extreme conditions. The results indicate that different reaction conditions led to different decomposition mechanisms of the CL-20 crystal.
(1) The initial decompositions of the CL-20 crystal using NVT and using NPT (3000 K and 3000 K coupled with 44.5 GPa) were triggered by the C—H cleavage and the C—C rupture, respectively. The subsequent decompositions mainly have two interesting paths using NVT and only one major distinctive channel using NPT. This indicates that the decomposition of the CL-20 crystal is sensitive to both high temperature and high pressure.
(2) The number of corresponding major products using NPT is smaller than those using NVT. This demonstrates that the high pressure decelerates the decomposition of CL-20.
Our theoretical studies provide a new insight into understanding coupling effects of the temperature and pressure on the initiation mechanisms and subsequent chemical decompositions of cage explosives.
